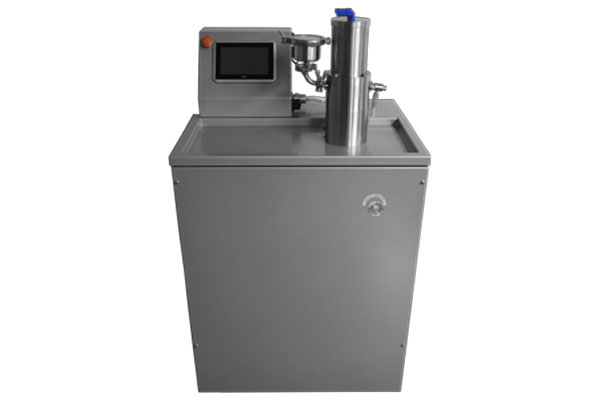

TS Series Cabinet

TS Series Cabinet

TS Series Cabinets are the ideal pilot prodution models and are versatile enough to adapt as yur needs change.



Specifications

Power Rating Flow Rates vs Maximum Pressure
  40 KPSI (2700 bar) 30 KPSI (2000 bar) 20 KPSI (1350 bar) 15 KPSI (1000 bar)
2.2 KW 190ml / min 24ml / min 300ml / min 310ml / min
4 KW 405ml / min 430ml / min 440ml / min 565ml / min

Incorporates our unique disruption head, precise hydraulic operating and control system with an automatically supplied, continuous flowing Cell Disrupter
Disruption pressure easily and accurately set and displayed digitally with a range of 1KPSI through to 40KPSI as standard
Touch screen control of disruption cycle, automatic shut down when process complete
Cell Disrupter controls peristaltic process pump for automatic supply of sample. Process pump available on request
Disruption head mounted in stainless steel tray to avoid spillage
Partial containment and simple externally controlled CIP
Internal relief valve fitted for reverse flow of cleaning fluids
Various flow rates are available depending on desired maximum pressure and power rating, alternative pressure heads available on request
Pressure consistent and stable during disruption cycle
Full bio-containment inlet and outlet options available on request
Materials in contact with sample, 316L stainless steel or equivalent, synthetic sapphire, EPDM, GLFPTFE & PEEK 450G
IQ/OQ available on request

Temperature Control: Disruption head is surrounded by unique coding jacket. Bath circulator or chiller is recommended.
