Dual-Twin Foaming Characteristics Apparatus

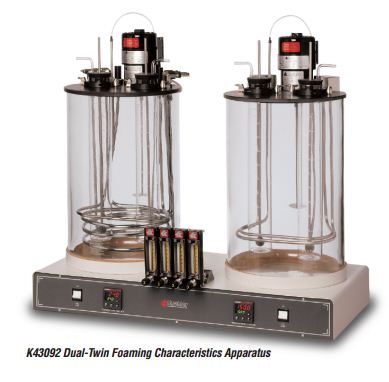

Dual Twin Foaming Characteristics Test Apparatus

D892 and D6082 Dual Twin Foaming Characteristics Test Apparatus
For four tests in accordance with control ASTM D6082 and ASTM D892 specifications. Dual liquid baths feature digital temperature control for Sequences I through IV. Four flowmeters maintain the required flow rate of 94 and 200mL/min to the air diffusers. Requires the use of an external chiller to perform the Sequence I and III tests at 24°C.

Specifications
- ASTM D892, D6082; IP 146; DIN 51566; FTM 791-3211; NF T 60-129
- Temperature Control: Digital Setpoint and Displays °C/°F switchable , Built-in Over temperature Cut-off Protection

Included Accessories
Test Cylinders, 1000mL (4)
Diffuser Stones, calibrated and certified (4)
Air Delivery Tube Assemblies (4)
Air Outlet Tubes (4)
Rubber Stoppers (4)
Bath Jars (2)
Support Rack (1)
Acrylic Safety Shield, 18"

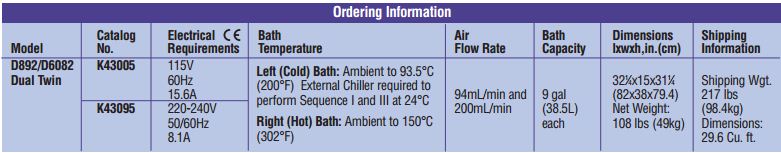

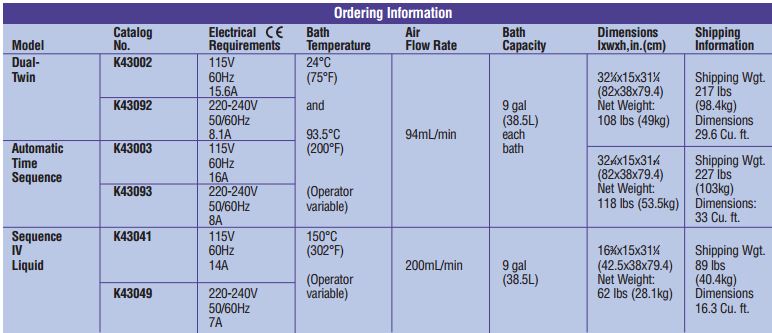

Accessories and Additional Ordering Information
For a complete listing of accessories and information on ordering a complete package for ASTM D892 and/or D6082 testing


?
